| Basic performance parameters | |
| Machine working weight (kg) | 1500 |
| Bucket capacity (m³) | 0.018 |
| Travel speed low/high speed (Km/h) | 0-1.5 |
| Gradeability(%) | 30% |
| Ground pressure (Kpa) | 31.4 |
| Maximum digging force (kN) | 10.4 |
| Maximum digging radius (mm) | 3274 |
| Maximum digging depth (mm) | 1807 |
| Maximum digging height (mm) | 3046 |
| Maximum unloading height (mm) | 2277 |
| Maximum deflection angle (°) | 92 |
| Track extension range (mm) | 890-1190 |
| Engine | |
| Engine brand | Kubota |
| Engine model | D722 |
| Maximum horsepower (ps) | 13.97 |
| Maximum power (Kw) | 10.2 |
| Maximum speed (rpm) | 2500 |
| Displacement (L) | 0.719 |
| Number of cylinders | 3 |
| Cooling method | Water-cooled |
| Engine oil change amount (L) | 3.5 |
| Fuel form | DIESEL |
| Fuel grade | 0/-10 |
| Theoretical fuel consumption (L/h) | 1.1-1.5 |
| Body | |
| Transport length (mm) | 2327 |
| Transport width (mm) | 983 |
| Transport height (mm) | 2243 |
| Counterweight ground clearance(mm) | 427 |
| Bucket width (mm) | 400 |
| Boom length (mm) | 1477 |
| Arm length (mm) | 800 |
| Bulldozer blade width (mm) | 1024 |

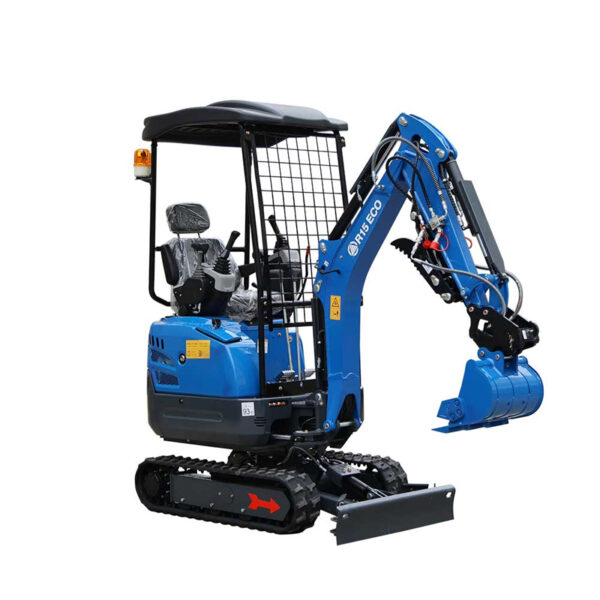

Mini Excavator R15
33 people are viewing this product right now
🔥 3 items sold in last 3 days
The R15 mini excavator has become a highlight product in export trade with its excellent performance, flexible operability, unique design, comfortable operating experience, efficient excavation ability and reliable quality, and can meet the needs of various users.
Estimated delivery:42 - 70 days
| Basic performance parameters | |
| Machine working weight (kg) | 1500 |
| Bucket capacity (m³) | 0.018 |
| Travel speed low/high speed (Km/h) | 0-1.5 |
| Gradeability(%) | 30% |
| Ground pressure (Kpa) | 31.4 |
| Maximum digging force (kN) | 10.4 |
| Maximum digging radius (mm) | 3274 |
| Maximum digging depth (mm) | 1807 |
| Maximum digging height (mm) | 3046 |
| Maximum unloading height (mm) | 2277 |
| Maximum deflection angle (°) | 92 |
| Track extension range (mm) | 890-1190 |
| Engine | |
| Engine brand | Kubota |
| Engine model | D722 |
| Maximum horsepower (ps) | 13.97 |
| Maximum power (Kw) | 10.2 |
| Maximum speed (rpm) | 2500 |
| Displacement (L) | 0.719 |
| Number of cylinders | 3 |
| Cooling method | Water-cooled |
| Engine oil change amount (L) | 3.5 |
| Fuel form | DIESEL |
| Fuel grade | 0/-10 |
| Theoretical fuel consumption (L/h) | 1.1-1.5 |
| Body | |
| Transport length (mm) | 2327 |
| Transport width (mm) | 983 |
| Transport height (mm) | 2243 |
| Counterweight ground clearance(mm) | 427 |
| Bucket width (mm) | 400 |
| Boom length (mm) | 1477 |
| Arm length (mm) | 800 |
| Bulldozer blade width (mm) | 1024 |
