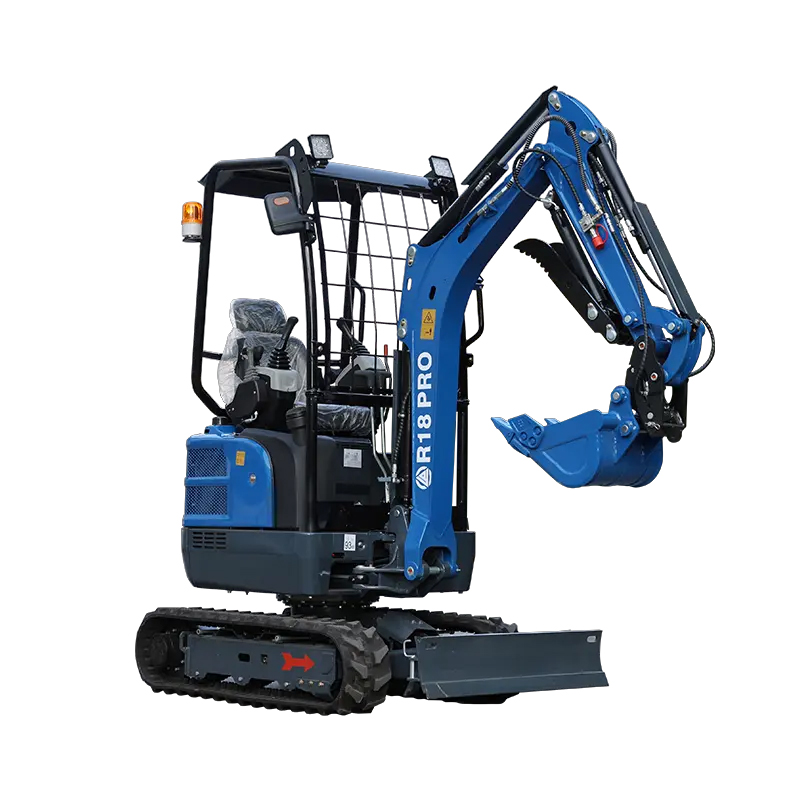

Mini Excavator R18
download brochure R18 PRO
| Basic performance parameters | |
| Machine working weight (kg) | 1818 |
| Bucket capacity (m³) | 0.045 |
| Travel speed low/high speed (Km/h) | 0-1.5/0-2.8 |
| Gradeability(%) | 30% |
| Ground pressure (Kpa) | 30.33 |
| Maximum digging force (kN) | 12.8 |
| Maximum digging radius (mm) | 3975 |
| Maximum digging depth (mm) | 2420 |
| Maximum digging height (mm) | 3396 |
| Maximum unloading height (mm) | 2182 |
| Maximum deflection angle (°) | 111 |
| Track extension range (mm) | 989-1309 |
| Engine | |
| Engine brand | Kubota |
| Engine model | D902 |
| Maximum horsepower (ps) | 16.1 |
| Maximum power (Kw) | 11.8 |
| Maximum speed (rpm) | 2300 |
| Displacement (L) | 0.898 |
| Number of cylinders | 3 |
| Cooling method | Water-cooled |
| Engine oil change amount (L) | 3.7 |
| Fuel form | DIESEL |
| Fuel grade | 0/-10 |
| Theoretical fuel consumption (L/h) | 1.5-1.8 |
| Body | |
| Transport length (mm) | 2403 |
| Transport width (mm) | 989 |
| Transport height (mm) | 2322 |
| Counterweight ground clearance(mm) | 486 |
| Bucket width (mm) | 400 |
| Boom length (mm) | 1120 |
| Arm length (mm) | 1780 |
| Bulldozer blade width (mm) | 990/1300 |
